Industrial Air Motors 3800

3800Q

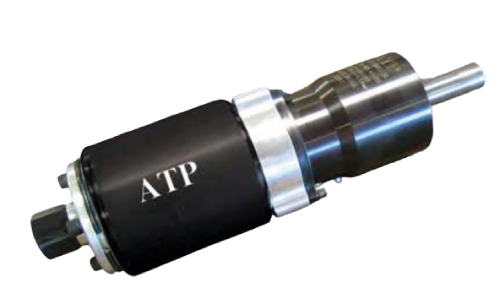

Air Motor

Air Motor

Features

  • High output durable vane motor
  • Rugged planetary gearing
  • Keyed output drive shaft
  • Variable speed control
  • Six hole face mounting
  • Mount in any position

Specifications

  • Max Power (HP)
    1.45
  • Max Power (KW)
    1.08
  • Speed at Max Power (RPM)
    180
  • Free Speed (RPM)
    375
  • Starting Torque (ft lb)
    62
  • Starting Torque (Nm)
    84.0
  • Stall Torque (ft lb)
    83.5
  • Stall Torque (Nm)
    113.0
  • Air Cons. at Max Power (CFM)
    48
  • Weight (lb)
    8.5
  • Weight (Kg)
    3.86
2 Years Warranty

2 Year Warranty

We warrant that our tools shall be free from defects in original workmanship and material and that it will be inspected by us before shipment.
